Start Project In Micrologix-1400

First Follow The step to setup a new Project.

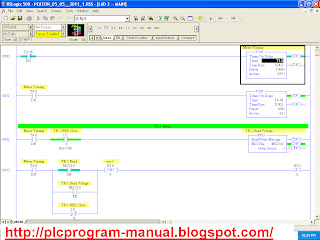

Here, we See two image. This is biger project programming.
In this project more then 50 I/O.
First we define the input list and output list.
Then start programming as we desing project. Before make any logic First make in your mind then impliment in programming.
Best Of  Luck..................

SIMPLE START STOP LOGIC.

Here, we see how make program logic. ON & OFF Moter using two pushbutton.Start & Stop.

INPUT        :- 1> Start Pushbutton

                  2> Stop Pushbutton

OUTPUT     :- Motor

Here, See this logic in ladder logic.

I:0/0 this addressing for PLC input number ZERO. see above the comment start.

I:0/1 this addressing for PLC input number ONE.  See above comment stop.

O:0/0 this addressing for PLC output number one. See above comment motor.

Here, we using NO contect for start and NC contect for stop.

NOW, MAKE YOUR PROGRAM LOGIC

For,Exampale i'm start making  program using TIMER,NO,NC contect. like that start your logic then download your logic to PLC then see your logic work right ya not?

If you have any problem just see instrucation help.

All  instrucation how work. This is explane in this help,so you make easy and best program.

thnax.

Now, We start a new project.

We see before, start  RS LOGIX-500 softwer. Now go to file and select new project.

After that you see the the new window. as see below.

Then you select the Processor Name For example Bul.1754 Micrologix-1000.

Now it's time to programming. you see below image after you select the Processor Name.

Now use the Tabbed Instrucation Bar(ALT+3).

Take a New Rang and start your programming.

NOW,WE LEARN RS LOGIX-500 SOFTWER.

Comunicate PLC and RS LOGIX-500 Softwer using this step.

First start the RS LINX softwer then go to communication then you see this windo.

STEP-1

This is a first step when we communicate the PLC and Softwer first  time. first of all open RS LINX then go to communication in menubar. then go to configure driver you see this windo then select add new.

Then you see this windo select PLC type and select com port. then set boud rate is depend your PLC types.

STEP-2

Then click ok then close now your PLC and PC are internally connected. then we go next step There we can make Program in Ladder logic in RS LOGIX-500. we can understand all step one by one.

APRIL,19 2011..............9.16 P.M

What is PLC?

                                       PLC is a Programmer logic controller. it's use in all industry where proccess running 24 hours 7 day. The defination is A Programmable Logic Controller is a solid state/computerzied industrial computer that performs discrete or sequential logic in a factory environment. It was originally developed to replace mechanical relays,timer,counters.

In PLC have own timer,counter, and most use full logic ready to use.
IN market so many PLC are avaliable. But logic are same to all PLC but it's softwer and instrution are diffrent.

For Example;

           PLC                                             SOFTWERE

1. Siemens                                         SimeticManeger
2. Allen-Bradley                                RS logix-500
3.  Panasonic                                     FPwin Pro

LIke that all PLC have own softwer so we use any PLC we correnty understand all menu and all toolbar which one use which time.All softwer have different communation setting so it's main part of progaramming.


After this post we go one by one PLC and it's softwer. so, All our reader are understand basic funda of PLC and PLC programming language and make a fast and easy program.


NOW, we can learn Allen-Bradley it's softwer is RS LOGIX 500.

April,18,2011.........10.19P.M
